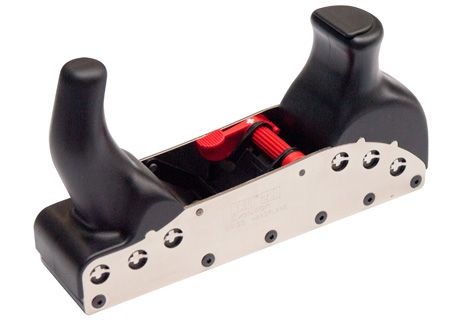

RALI 220 Evolution N
Description
This is the most versatile two-hand block plane in the Evolution N range, with nickel-plated sides for ultimate protection, to be used with both hands, for professionals and enlightened amateurs alike. This hand plane features the innovative instant blade change system, and the unique ergonomic shape of the handles ensures constant force on the wood for high-precision work. Its heavy sole provides excellent inertia for all types of wood. Finally, the 3 ultra-simple settings take just seconds. This is the best-selling block plane for professionals and enthusiasts alike, for use in workshops and on building sites. The planer RALI 220 Evolution N is always ready for use, thanks to the ability to turn the blades over in less than 10 seconds. The fact that no sharpening is required is particularly appreciated by professionals for the time it saves. No more jobsite incidents!
No more sharpening
Unique patented blade-change system in seconds. The blades supplied are bi-cut and reversible with a factory-set cutting edge.
Setting 1:
cutting depth
Instant cutting depth adjustment with red lever. There's no need to lay your plane down when you set it up. Simply retract the blade to the base.
Setting 2 :
the chipbreaker
This adjustment is made with the central red knob in a matter of seconds, for perfect roughing and finishing.
Setting 3 :
the mouth
The unique design of our soleplate makes it very easy to adjust the mouth by simply unscrewing the 3 screws on the front soleplate. Ideal for avoiding jamming on green wood, for example.
Blade always parallel
The original RALI blades are automatically locked in place and aligned parallel to the base by means of cleverly placed coded pins on the chipbreakers.
Very, very long blade life
1600 meters of chips with a single blade: this is the test carried out at the factory with a chrome blade dedicated to working with soft to medium woods. ** 4 blades are supplied with the plane 220 Evolution N
Innovative heavy sole

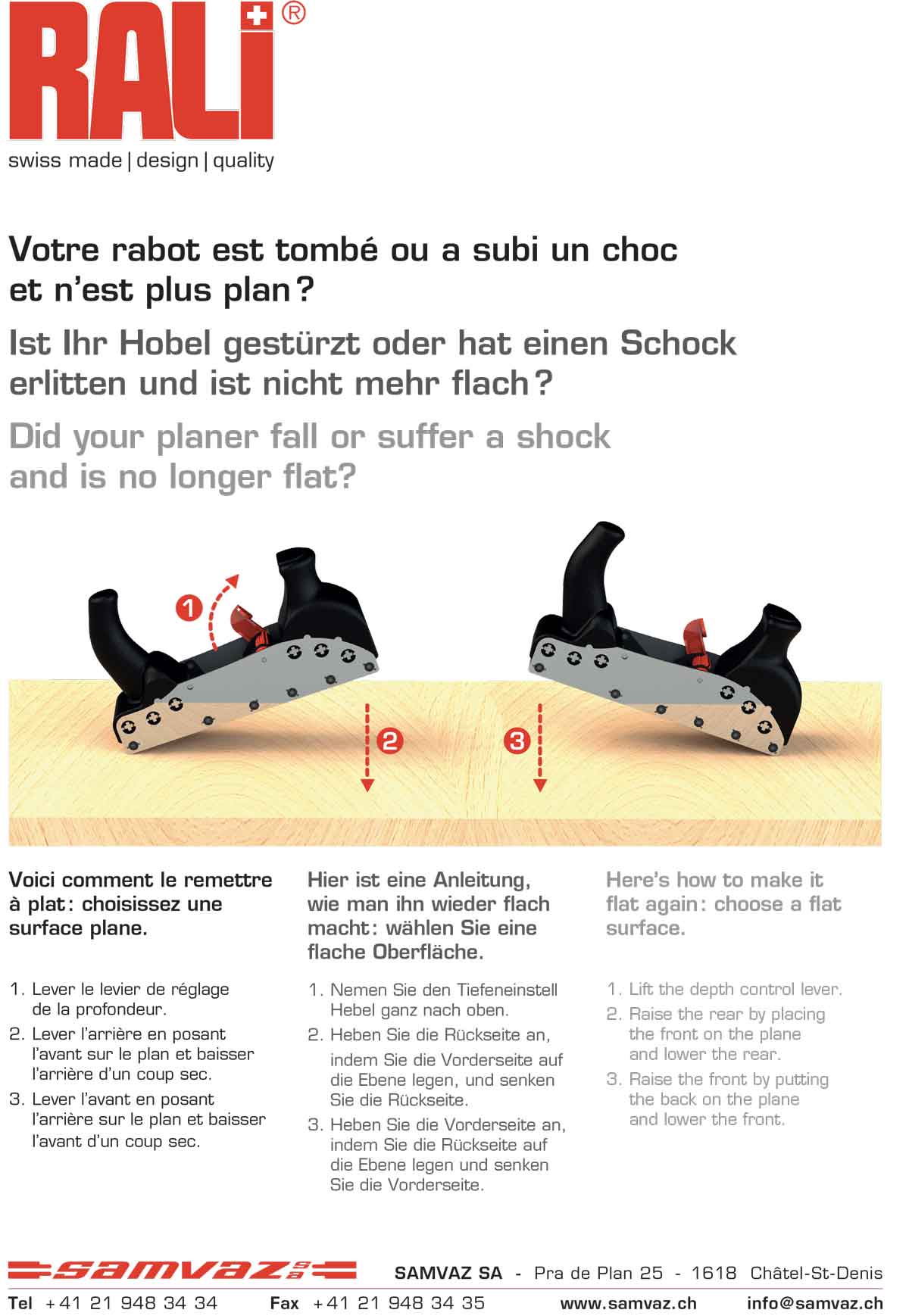

RALI has designed a unique two-part lamellar sole. This significantly reduces friction with the material. The sole is adjustable and can be repaired in the event of impact.
A clever little compartment
No need to search for your blades in the toolbox or in a locker, a small compartment in the rear handle allows you to store several blades. Ideal for jobsites, your tools are always ready for use.
5-year warranty offered
On the 220 Evolution N plane, we offer a 5-year warranty instead of 2, as on all tools in this range. As a manufacturer, we can supply all spare parts for your future plane.
Technical sheet handplane RALI 220 Evolution N
| SKU | 108767 |
| Weight | 1.191000 |
| L x H x W | 230x215x60 |
| Function | Surfacing plane |
| Chipbreaker | Adjustable |
| Mouth | Adjustable |
| Cutting depth | Adjustable |
| Blade type | Chrome Steel |
| Included | 4 chrome steel blades |
| Color | Black |
| Side | Nickel |
| Length | 220 mm |
| Type | European |
| Sole | Heavy |
| Double-edged blade | Yes |
| Resharpenable | No |
| Country of Manufacture | Switzerland |
